Quality control on Chromium CRISPR Guide Capture libraries
Kayla Jackson and A. Sina Booeshaghi
2024-05-13
Source:vignettes/vig12_crispr.Rmd
vig12_crispr.RmdIntroduction
The data in this vignette is shipped with the cellatlas
repository. The count matrix and metadata are provided in the
cellatlas/examples folder as an AnnData
object. We will begin by loading the object and converting it to a
SingleCellExperiment object.
library(stringr)
library(Matrix)
library(DropletUtils)
library(SpatialExperiment)
library(SpatialFeatureExperiment)
library(scater)
library(scuttle)
library(Voyager)
library(ggplot2)
theme_set(theme_bw())
if (!file.exists("10xcrispr.rds"))
download.file("https://github.com/pachterlab/voyager/raw/documentation-devel/vignettes/10xcrispr.rds", destfile = "10xcrispr.rds")
sce <- readRDS("10xcrispr.rds")
is_mito <- str_detect(rowData(sce)$gene_name, regex("^mt-", ignore_case=TRUE))
sum(is_mito)
#> [1] 0
sce <- addPerCellQCMetrics(sce, subsets = list(mito = is_mito))
names(colData(sce))
#> [1] "sum" "detected" "subsets_mito_sum"
#> [4] "subsets_mito_detected" "subsets_mito_percent" "total"

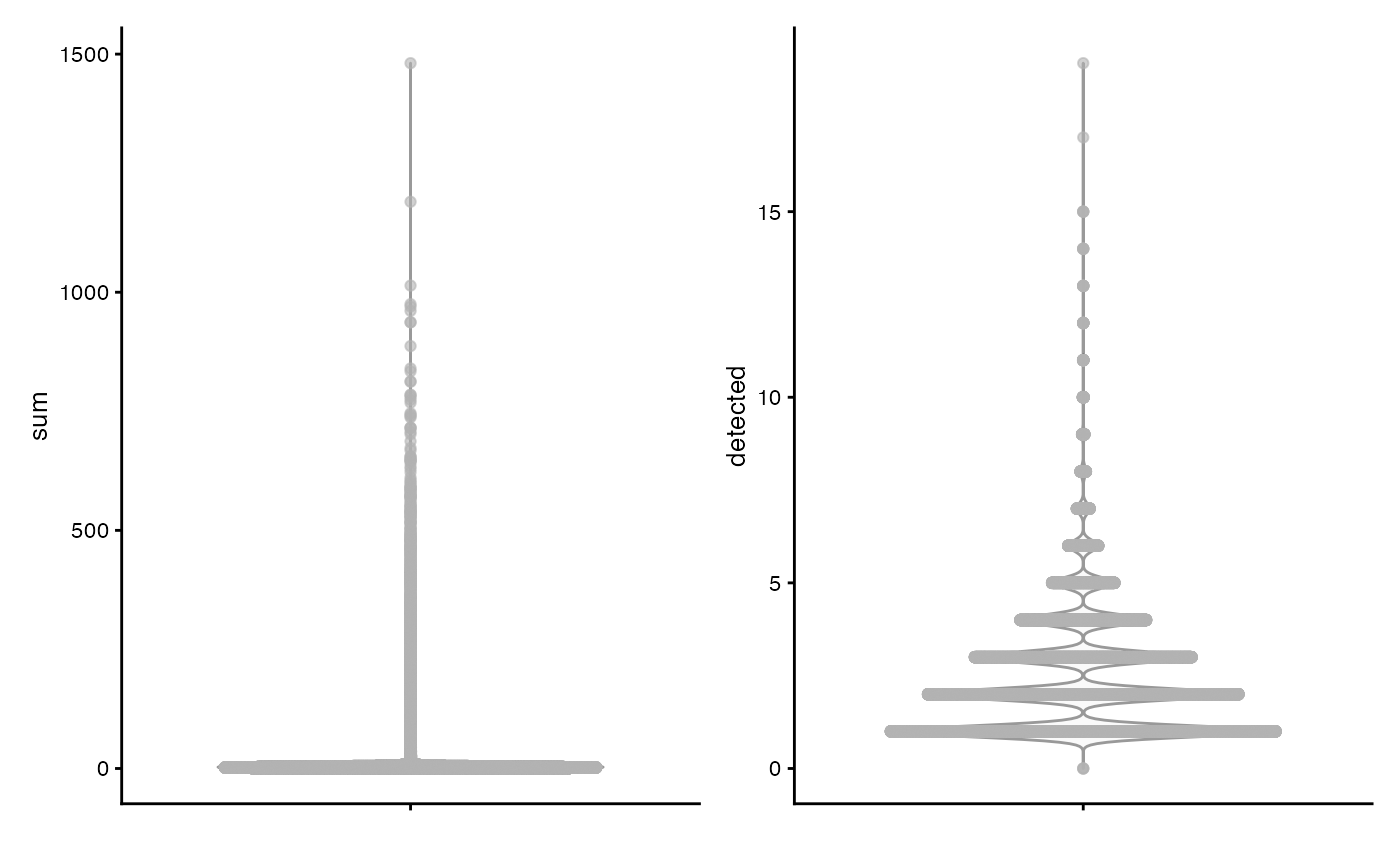

plotColData(sce, "sum") +
plotColData(sce, "detected")
plotColData(sce, x = "sum", y = "detected", bins = 100) +
scale_fill_distiller(palette = "Blues", direction = 1)
#> Scale for fill is already present.
#> Adding another scale for fill, which will replace the existing scale.
plotColData(sce, x = "sum", y = "subsets_mito_detected", bins = 100) +
scale_fill_distiller(palette = "Blues", direction = 1)
#> Scale for fill is already present.
#> Adding another scale for fill, which will replace the existing scale.
#> Warning: Computation failed in `stat_bin2d()`.
#> Caused by error in `bin2d_breaks()`:
#> ! `origin` must be a number, not `NaN`.
bcrank <- barcodeRanks(counts(sce))
knee <- metadata(bcrank)$knee
inflection <- metadata(bcrank)$inflection
plot(bcrank$rank, bcrank$total, log="xy",
xlab="Rank", ylab="Total ClickTags count", cex.lab=1.2)
#> Warning in xy.coords(x, y, xlabel, ylabel, log): 3 y values <= 0 omitted from
#> logarithmic plot
abline(h=inflection, col="darkgreen", lty=2)
abline(h=knee, col="dodgerblue", lty=2)
sce <- sce[, which(sce$total > inflection)]
sce <- sce[rowSums(counts(sce)) > 0,]
sce
#> class: SingleCellExperiment
#> dim: 89 293
#> metadata(0):
#> assays(1): counts
#> rownames(89): Non-Targeting-5 Non-Targeting-7 ... HDAC1-1 HDAC1-2
#> rowData names(1): feature_name
#> colnames(293): AAAGAACAGAAACGAA AAAGAACGTTTGTCGA ... TTTGATCCAGGAGAAA
#> TTTGATCGTGGTAGTG
#> colData names(6): sum detected ... subsets_mito_percent total
#> reducedDimNames(0):
#> mainExpName: NULL
#> altExpNames(0):
