10X Multiome ATAC-seq basic quality control
Kayla Jackson and A. Sina Booeshaghi
2024-05-13
Source:vignettes/vig14_10xmultiome.Rmd
vig14_10xmultiome.RmdIntroduction
The data in this vignette is shipped with the cellatlas
repository. The count matrix and metadata are provided in the
cellatlas/examples folder as an AnnData
object. We will begin by loading the object and converting it to a
SingleCellExperiment object.
library(stringr)
library(DropletUtils)
library(Matrix)
library(SpatialExperiment)
library(SpatialFeatureExperiment)
library(scater)
library(scuttle)
library(Voyager)
library(ggplot2)
theme_set(theme_bw())
if (!file.exists("10xmultiome.rds"))
download.file("https://github.com/pachterlab/voyager/raw/documentation-devel/vignettes/10xmultiome.rds", destfile = "10xmultiome.rds")
sce <- readRDS("10xmultiome.rds")
sce <- addPerCellQCMetrics(sce)
names(colData(sce))
#> [1] "sum" "detected" "total"

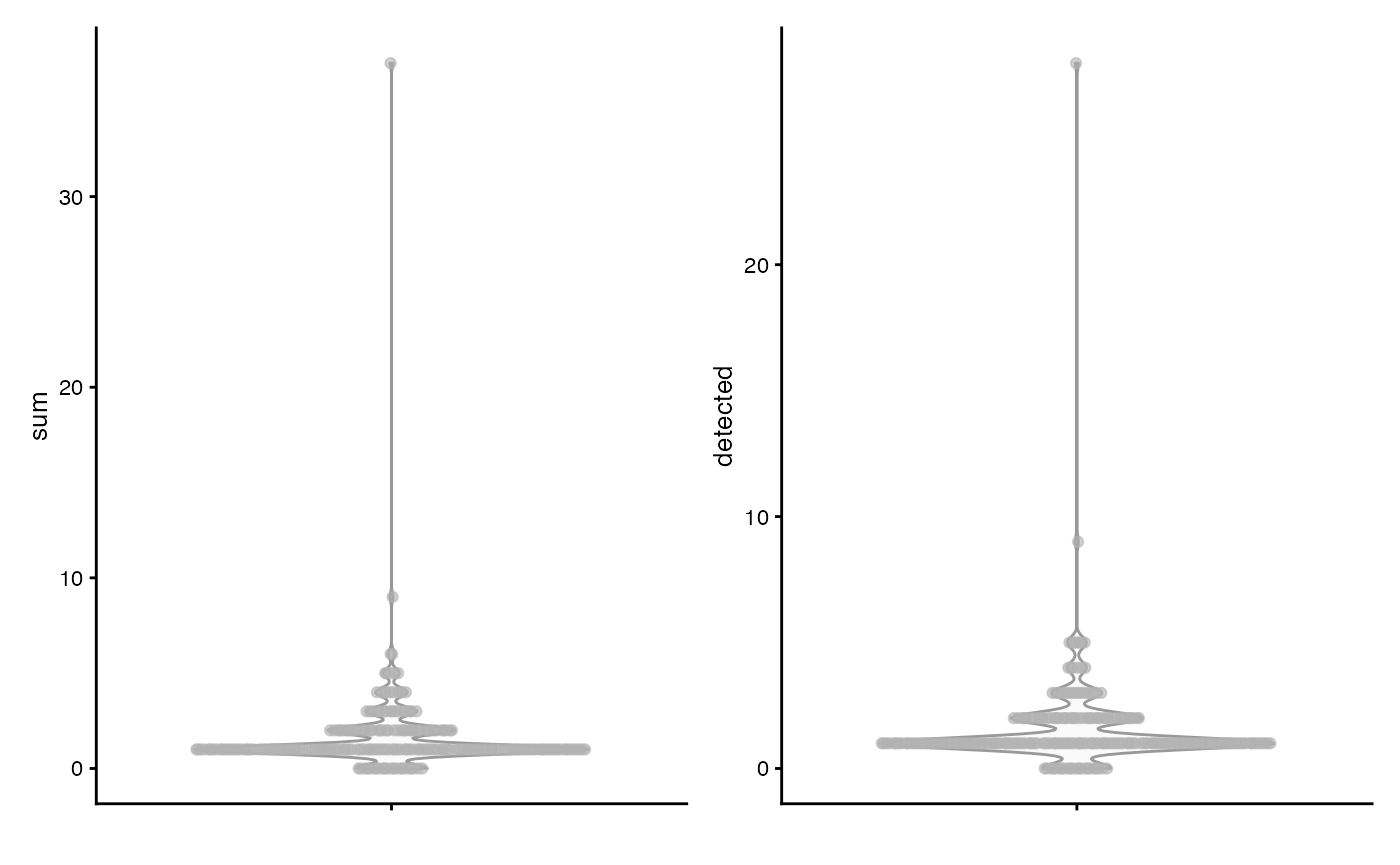

plotColData(sce, "sum") +
plotColData(sce, "detected")
plotColData(sce, x = "sum", y = "detected", bins = 100) +
scale_fill_distiller(palette = "Blues", direction = 1)
#> Scale for fill is already present.
#> Adding another scale for fill, which will replace the existing scale.
sce <- sce[, which(sce$total > 0)]
sce <- sce[rowSums(counts(sce)) > 0,]
sce
#> class: SingleCellExperiment
#> dim: 277 198
#> metadata(0):
#> assays(1): counts
#> rownames(277): 1:39574808-39575296 1:43131572-43131673 ...
#> X:152281428-152281521 X:166010316-166010375
#> rowData names(0):
#> colnames(198): AAACGGTTCATTAGCT AAACGGTTCCGAAACG ... TTTCAAGGTACTAACC
#> TTTCCGGCATTAGCAG
#> colData names(3): sum detected total
#> reducedDimNames(0):
#> mainExpName: NULL
#> altExpNames(0):
sessionInfo()
